Three Phase CT

Three Phase CT
Three Phase CTThree Phase CTThree Phase CT

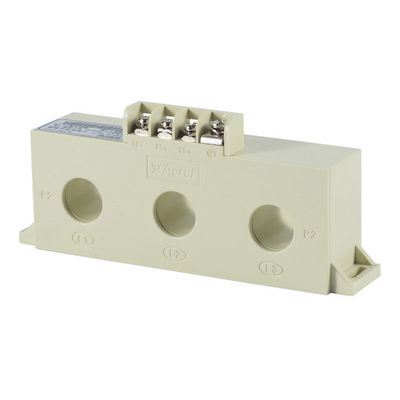

AKH-0.66 Z three phase current transformer is constructed with a DIN-rail mounting enclosure, featuring a superior look with easy wiring and installation. A variety of materials is available for DIN-rail mounting enclosure, such as glass fiber reinforced nylon, PPT, clear polycarbonate, flame-retardant PC/ABS alloy. The three phase current transformer is compatible to AMC16 multi-loop power meter and PZ-300 digital panel meter. It is suitable for those installation spaces and wiring requirements are a consideration, can save both time and cost for users.

Inquiry
Technical Data
  • Rated current ratio
    5-100/5A, 150/5A, 200/5A, 5-100/1A, 150/1A, 200/1A, 5-200A/50mA
  • Precision degree and corresponding rated load (VA/Ω)
    Class 0.5: 1.5VA, 2.5VA, 1.5Ω, 2.5Ω, 0.5VA
    Class 1: 1.5VA, 1.5Ω
  • Max. Cable outer diameter (mm)
    Φ20
  • Outline size
    138*52*34 mm
  • Tolerance
    ±1

Download Product Details (PDF)
