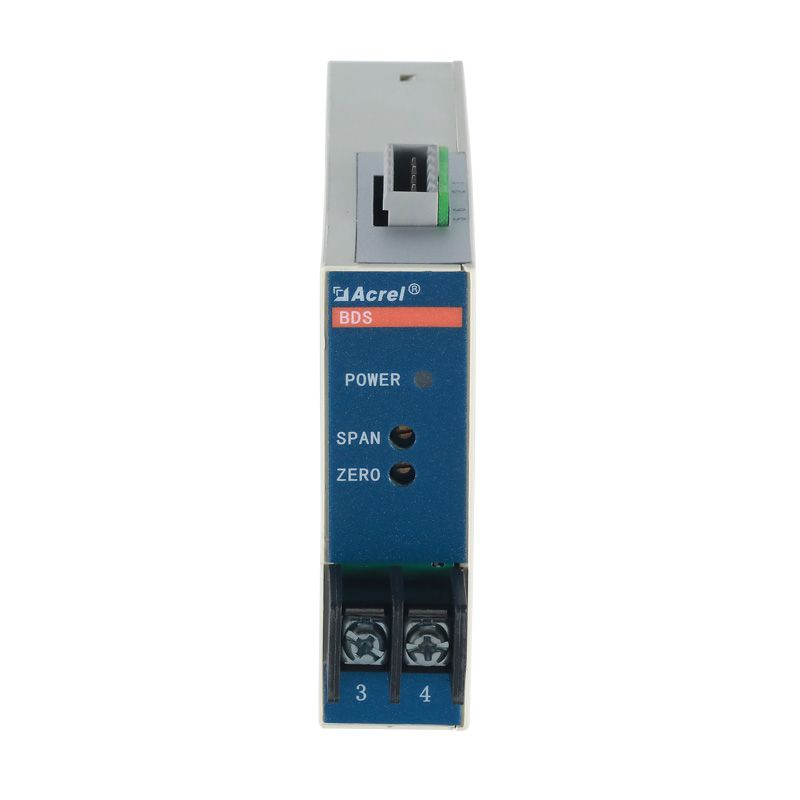

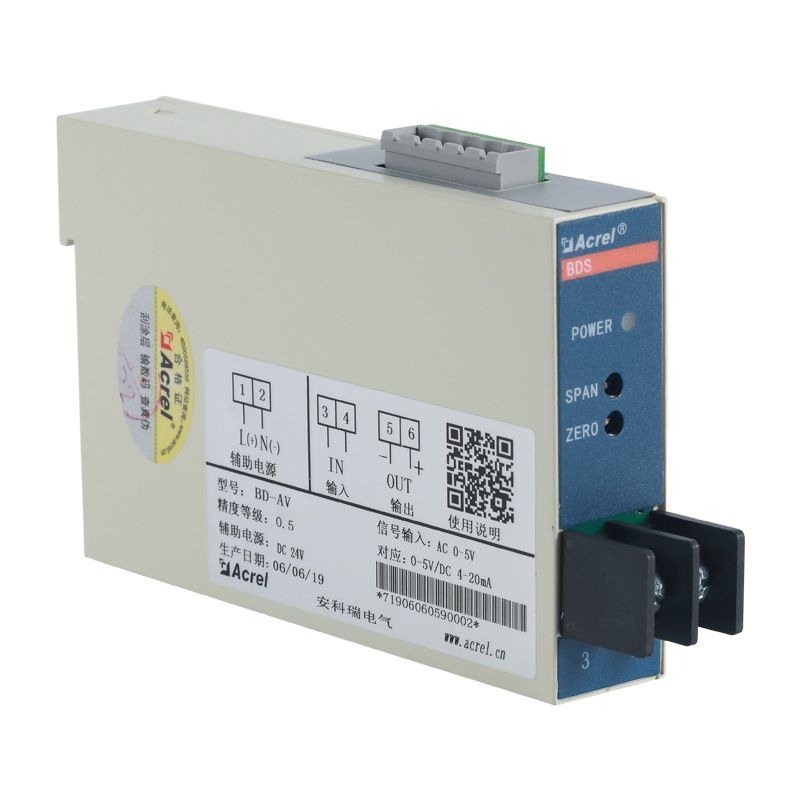

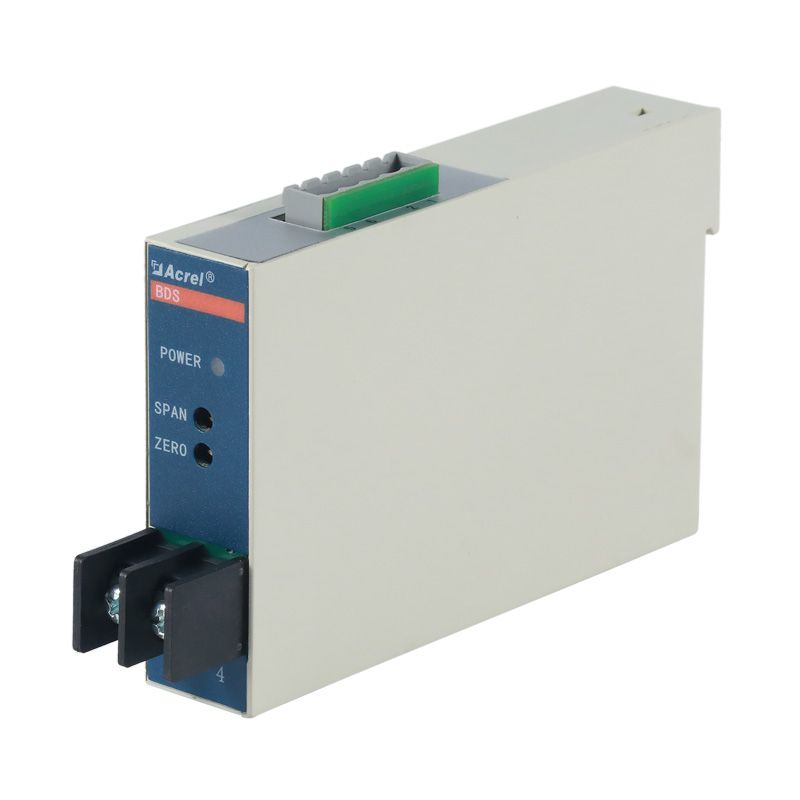

Analogue Signal Transducer BM Series

BM series current transducer can quickly and accurately measure electrical quantities (e.g. current and voltage) and non-electrical quantities (e.g. temperature and resistance), then isolate and convert the input measurand (the parameter being measured) into standard analogue output signal.

Inquiry
Technical Data
Technical parameters Index
Input Range Current: 4-20mA, 0-1mA, 0-20mA
Voltage: 0-1V, 0-5V, 0-10V, 0-75mV, etc
Impedance Current: 0(4)-20mA, 100Ω
0-1mA, 1kΩ, voltage≥100Ω
Overload Current: 100mA or 1W
Voltage: 50V at 0-10V
Output Range DC4~20mA
Load < 500 Ω
Zero adjustment 5%
Span adjustment 5%
Protection Short circuit protection
Power supply Range Direct voltage: 8.5-40VDC, normally 24VDC/2W
Max. current 24mA
Other Accuracy/linearity Max. 0.5% of full span
Temperature effect ≤200ppm/℃
Response time ≤400ms
Isolation voltage 2kV between input and output
Operating/storage temperature -10℃ ~+55℃/-25 ~+70℃
Installation method With guide rail TS35

These current transducers can be directly attached to pointer meters or digital meters, and also integrated into automatic control systems (e.g. PLC control), various analogue-to-digital (A/D) converters and computers.

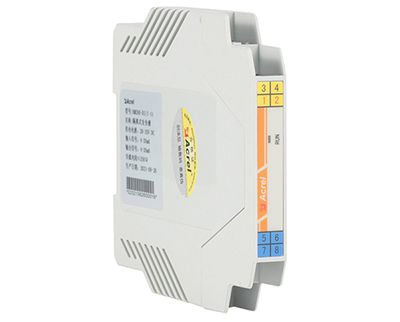

Isolated Safety Barrier, BM200
