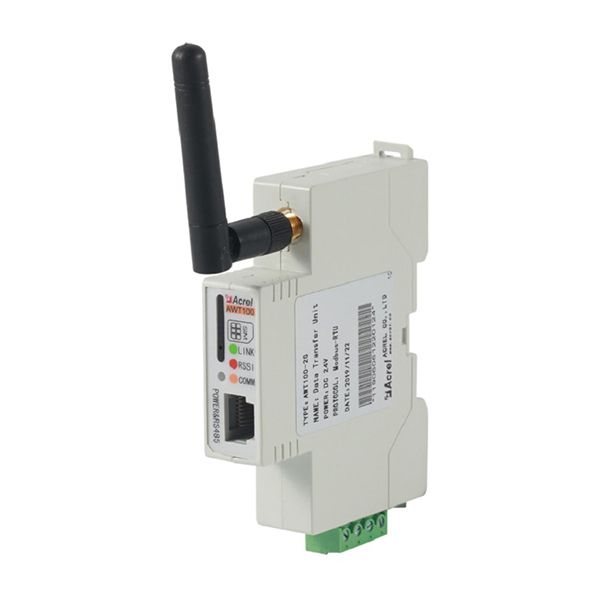

Smart GatewayWireless Communication Terminal, AWT100

AWT100 wireless communication terminal is mainly used for wireless data collection, uplink communication includes 2G, 4G, NB, LoRaWAN and other communication methods, and downlink interface provides standard RS485 data interface.

Inquiry

• Support data acquisition of serial port MODBUS RTU protocol, and communicate with Acrel server through Acrel platform protocol
• Support data acquisition for up to 30 MODBUS RTU devices
• Support the acquisition of 5 register address fields for each MODBUS device, each register address range does not exceed 64
• Support triggering alarms by preset alarm addresses and alarm values for each MODBUS address range. Each address domain alarm address currently has a maximum of five
• Support server MODBUS or LoRa transparent communication
• Support fixed IP and dynamic domain name resolution to connect to the data center
• Support transparent transmission protocol, universal mode (active rotation, timed reporting), MQTT protocol, smart power wireless protocol, prepaid wireless protocol, can be custom developed
• The functions of the AWT100-LW wireless communication terminal are still under development, and data can be uploaded to the server through LoRa communication in the future.

Note: The AWT100-2G/NB/4G wireless communication terminal can communicate with the Acrel server through the Encore platform protocol.
