Power Monitoring System
Application
  • State Grid
  • Data Center
  • Municipal Engineering
  • Chemical Industry
  • Traffic Industry
  • Industrial and Mining Enterprise
  • Petroleum
  • Metallurgical Industry
Structure

Main Functions

Remote Measuring, Signal

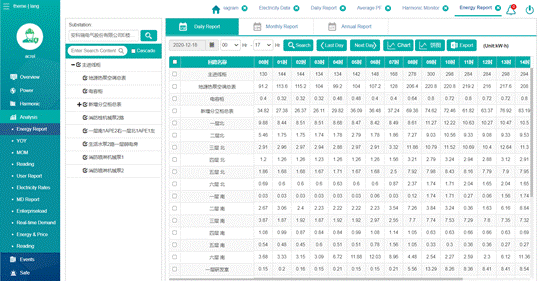

Report

Curve

Ault recorder

Harmonic Monitoring

Web/APP

Product Selection

AM5 Series Protection Relay

● A complete set of protection, related to the application;

● 8 current input, 4 voltage input, 16 DI, 10 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.
More

AM4 Series protection relay

● A complete set of protection, related to the application;

● 4 current input, 4 voltage input, 12DI, 5DO;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● 1 RS485 serial communication, IEC60870-5-103 and Modbus-RTU;

● 1 RS232 for user update;

● 1 GPS for GPS timing;

● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;

● Powerful graphic programmable Logic.

More

AM3SE Protection Relay

Line Protection, Transformer Protection,Voltage Transformer Supervision.

AM2SE Protection Relay

Line Protection, Transformer Protection

APQM-E Advanced Power Device

Advanced power quality analysis and revenue-accurate.

ATE400 Wireless Temperature Sensor

● Small size
● Wireless transmit;
● Wireless transmission distance, 150 meters;
● Fase sampling frequency,15s;
● CT-powered, more than 5A starting current;
● Widely temperature measuring range, -40℃~125℃.

ATE200 Wireless Temperature Sensor

● Wireless transmit;
● Wireless transmission distance, 150 meters;
● Fase sampling frequency,25s;
● Battery -powered,more than 5 years;
● Widely temperature measuring range, -40℃~125℃.

ATE100 Wireless Temperature Sensor

● Wireless transmit,2.4GHz;
● Wireless transmission distance, 10 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.
More

ATE100M Wireless Temperature Sensor

● Wireless transmit
● Wireless transmission distance, 150 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.
More

ATC450-C Wireless Temperature Measurement

● Wireless temperature measurement;
● Measuring 60 points;
● 1 RS485 serial communication, Modbus-RTU;
● Power supply adapt with DC24V.
More

ATC600-C Wireless Temperature Measurement

● Wireless temperature measurement;
● Measuring 240 points;
● 1 RS485 serial communication, Modbus-RTU;

● 2 alarm relays

● Power supply adapt with AC/DC220V, AC/DC110V.
More

ARTM-Pn wireless temperature measuring equipment

● Wireless temperature measurement, maximum measuring 60 points;

● 4 digital inputs;
● 2 alarm relays;
● LCD display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, Modbus-RTU.
More

ARTM-8 Multi Channel Temperature Controller

ARTM-8 series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.

● 8 PT100 measurement;
● 2 Alarm relays；
● LED display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V;
● 1 RS485 serial communication, Modbus-RTU;
