Multi-loop Power Meter for IDC (Internet Data Center), AMC16

AMC16 series multi-loop power monitoring unit is specially designed to meet the increasing demands for precise power distribution management in internet data centers. The multi-loop power meter features compact size and flexible connection mode, offering high accuracy measurement, display and communication. This enables it to be ideally suitable for power monitoring operations and equipment preventative maintenance.

AMC16Z-ZA Series Multi-Loop Power Meter

Multi-loop Power Meters
Technical Data
  • Distribution system: AC
  • Voltage Range: 40~400V AC
  • Current Range: 0~120%
  • Accuracy: Class 0.2(U/I), Class 0.5(P/EP), Class 1(Q/EQ)
  • Frequency: 45~65Hz
  • Auxiliary power supply: AC 85~265V/DC 100~350V
  • Insulation resistance: 100MQ
  • Switch output: 2 channels (3A 250VAC/3A 30VDC)
  • Switch input 6 channels
  • Communication RS485 (Modbus-RTU)
Download Product Details (PDF)

AMC16MA Series Multi-Loop Power Meter

Multi-loop Power Meters
Technical Data
  • Input DC rated voltage: 1 channel -48VDC
  • Input DC current: 6 channels hall sensors total 200A/5V, and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V
  • Commercial power monitoring: 1 channel 0-5VDC
  • Accuracy (superposition hall sensors): 1%ln10%ln error±2%
  • Measurement resolution: voltage 0.01V, Current 0.01 A, Power 0.01 kW, Energy 0.01 kWh
Download Product Details (PDF)

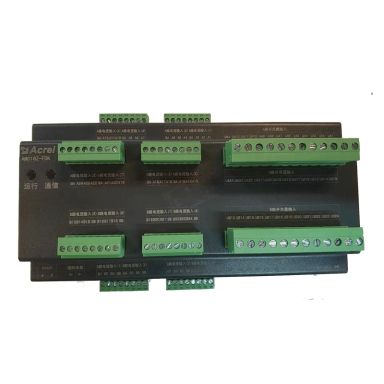

AMC16Z-FAK48 Series Multi-Loop Power Meter

Multi-loop Power Meters
Technical Data
  • Distribution system: AC
  • Specification: 1 phase 2 wires, 3 phase 4 wires
  • Voltage Rated voltage: 3x220/380V
  • Accuracy: ±0.2%
  • Current CT: XXA/50mA
  • Auxiliary power supply: DC12V
  • Power consumption supply: 3w
  • Frequency: 45~65Hz, ±0.2%
  • Accuracy: Class 0.5(P/EP) I Class 1(Q/EQ)
  • Communication: RS485 (Modbus-RTU)
  • Temperature Operation: -15℃~+55℃ Storage: -25℃~+70℃
  • Humidity: < 95% (No condensation)
Download Product Details (PDF)
